ISO 5675 Hydraulic Quick Coupling Bulkhead Push Pull Type

Name: ISO 5675 Hydraulic Quick Coupling Bulkhead Push Pull Type
Brand: carterberg
Price: 1 USD

Brand Name : carterberg

Model Number : CB-4

Certification : IATF16949

Place of Origin : Shanghai, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000~20000 pc/month

Delivery Time : 7-20 work days

Packaging Details : carton

Material : Steel

Standard : ISO5675

Rated Pressure : 4000PSI

Rated Flow : 12GPM

Temperature : -20℃~120℃

Use on : agricultural machinery

Size : 1/2

Compatible with : PAPKER 4250 Series, FASTER CPV-CNV Series

Contact Now

ISO 5675 Ball Valves Type Hydraulic Quick Coupling(Steel) use on construction equipment

Applications: The Series brings to the industry a proven design for use on construction equipment, forestry equipment agricultural machinery, and oil tools.

Specifications:

Body Size(in)	1/2
Rated Pressure(PSI)	3000
Rated Flow(GPM)	12
Temperature Range(std seals)	-20℃ to +120℃
Standard seal material	NBR

Features

1.Double acting sleeve for one handed push-to-Connect operation when coupler is clamp or bulkhead mounted.
2.Poppet valves available to prevent uncoupled leakage.
3.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
4.Critical parts are hardened for durability.
5.Dependable ball-locking mechanism holds the mating halves together.
6.Socket and plug are precision machined from solid bar stock.
7.The series conforms to the standard of ISO5675.

8.Compatible with PAPKER 4250 Series, FASTER CPV-CNV Series.

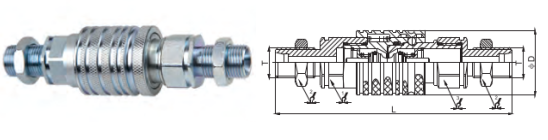

ISO 5675 Hydraulic Quick Coupling Bulkhead Push Pull Type

ISO	PARTNO.	L	￠D	HEX1	HEX2	T
12.5	CB-5SP-4F3/8	105.5	38	27	27	3/8BSP NPT3/8
12.5	CB-5SP-4F1/2	105.5	38	27	27	1/2BSP NPT1/2
12.5	CB-5SP-4F3/4	105.5	38	34	34	3/4BSP NPT3/4
12.5	CB-5SP-4FM14	105.5	38	27	27	M14*1.5
12.5	CB-5SP-4FM16	105.5	38	27	27	M16*1.5
12.5	CB-5SP-4FM18	105.5	38	27	27	M18*1.5
12.5	CB-5SP-4FM22	105.5	38	27	27	M22*1.5

ISO 5675 Hydraulic Quick Coupling Bulkhead Push Pull Type

ISO	PARTNO.	L	D	HEX1	HEX2	T
12.5	CB-5SP-8L	109.5	38	27	27	M14*1.5
12.5	CB-5SP-10L	109.5	38	27	27	M16*1.5
12.5	CB-5SP-12L	109.5	38	27	27	M18*1.5
12.5	CB-5SP-15L	113.5	38	27	27	M22*1.5
12.5	CB-5SP-18L	113.5	38	27	27	M26*1.5
12.5	CB-5SP-10S	109.5	38	27	27	M18*1.5
12.5	CB-5SP-12S	109.5	38	27	27	M20*1.5
12.5	CB-5SP-14S	113.5	38	27	27	M22*1.5
12.5	CB-5SP-16S	113.5	38	27	27	M24*1.5
12.5	CB-5SP-20S	115.5	38	30	30	M30*2

ISO 5675 Hydraulic Quick Coupling Bulkhead Push Pull Type
